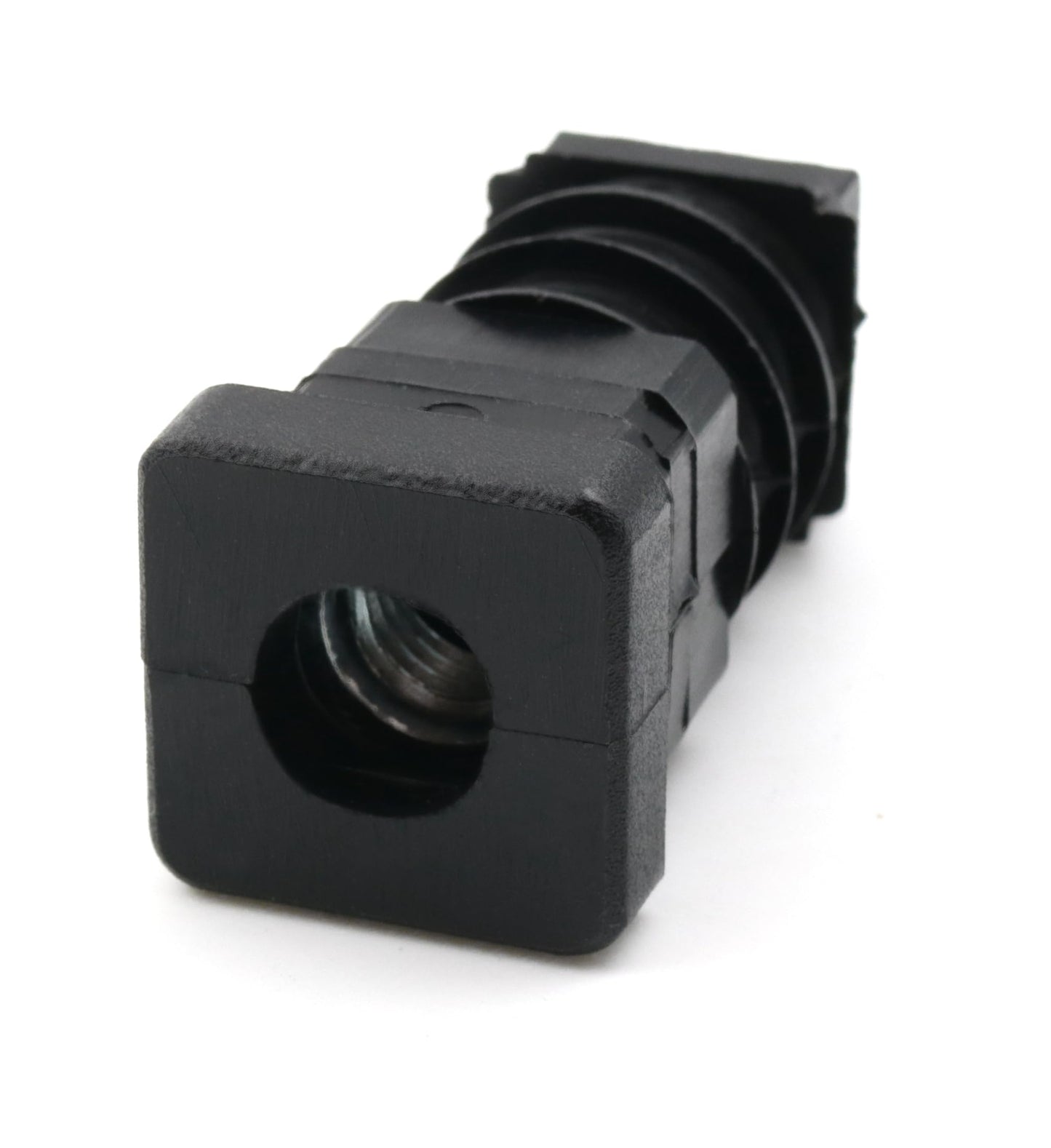

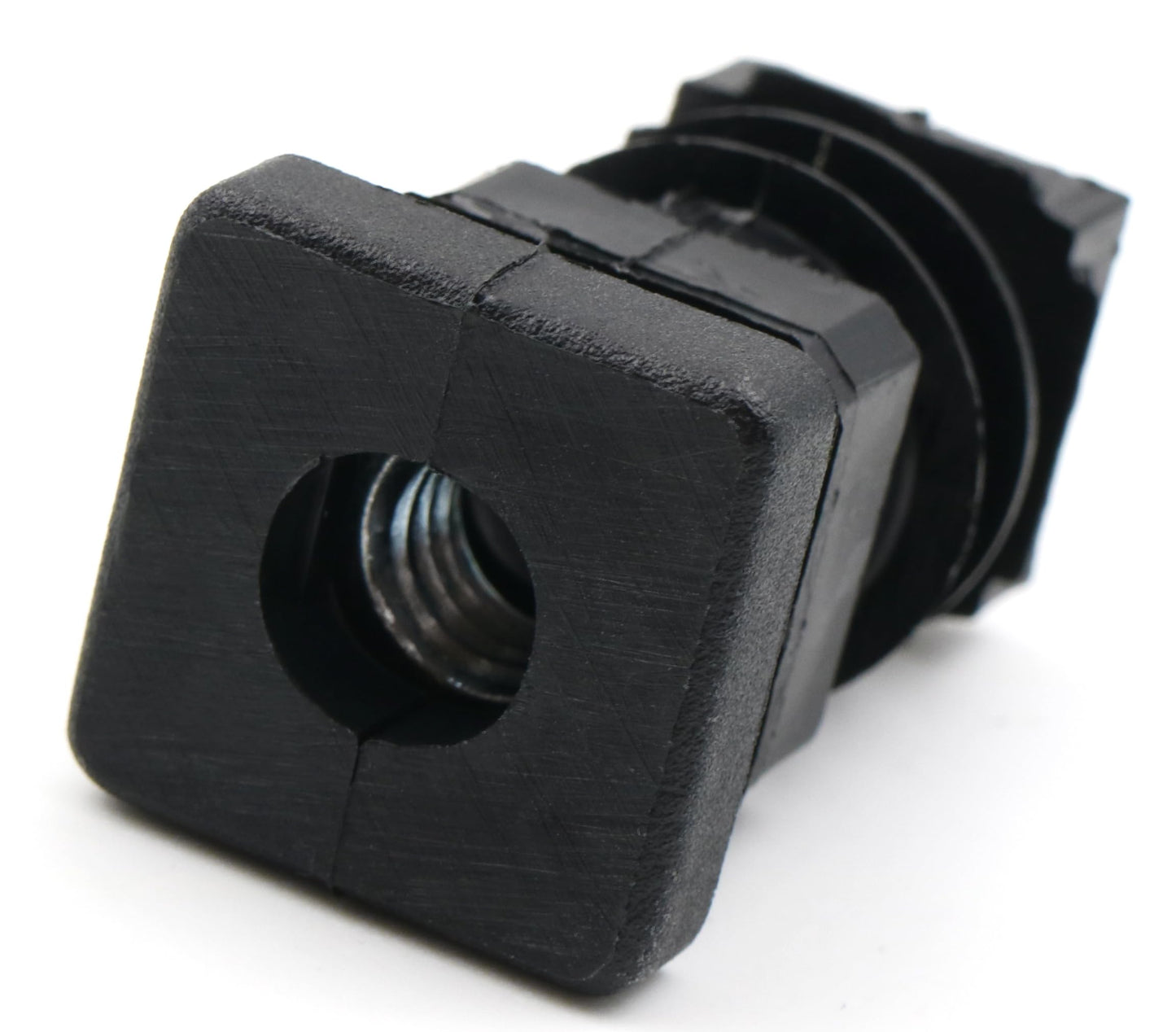

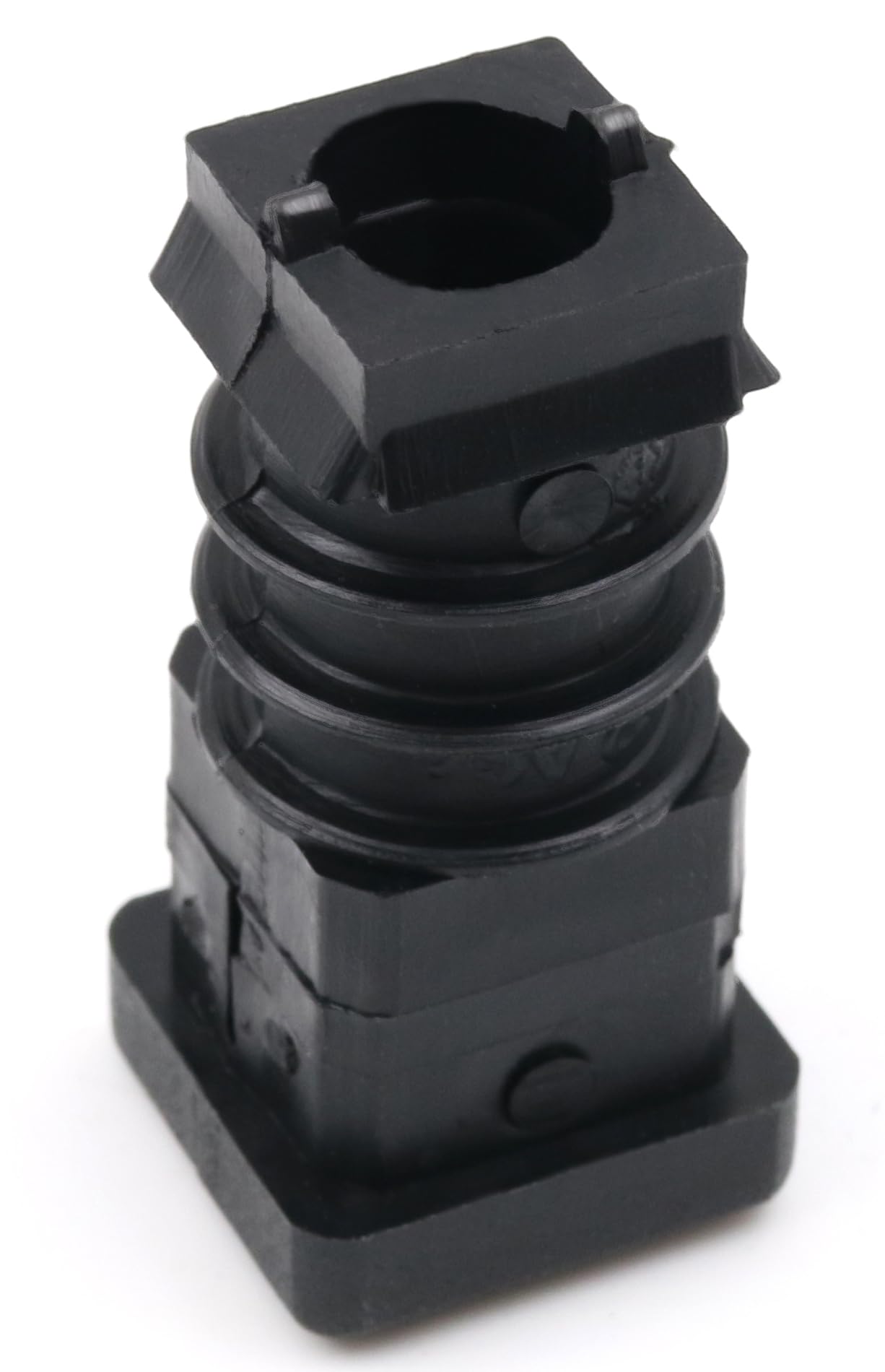

Design61 4X threaded plugs square tube plugs 20x20 mm 1.5-2mm with M8 internal thread

For 20 x 20 mm square tubes with a wall thickness of 1.5-2 mm

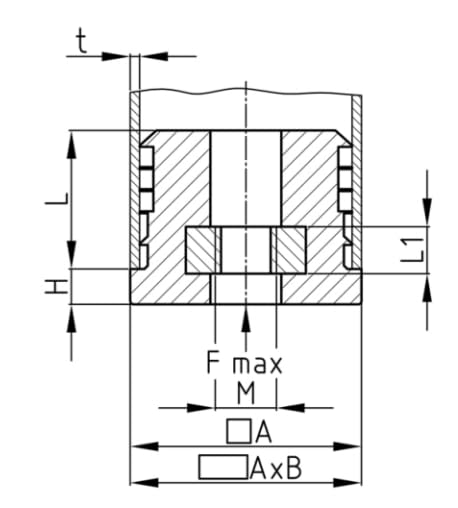

A = 20 / F max: 300 kg / H = 5 / L = 34 / L1 = 6.8 / M = M8 / t = 1.5-2 mm

Material: Base body: Polyamide (PA) Thread: Galvanized steel / High quality and robust

Without slats with smooth sliding surface / total height approx. 39 mm

Easy installation - for hammering or inserting

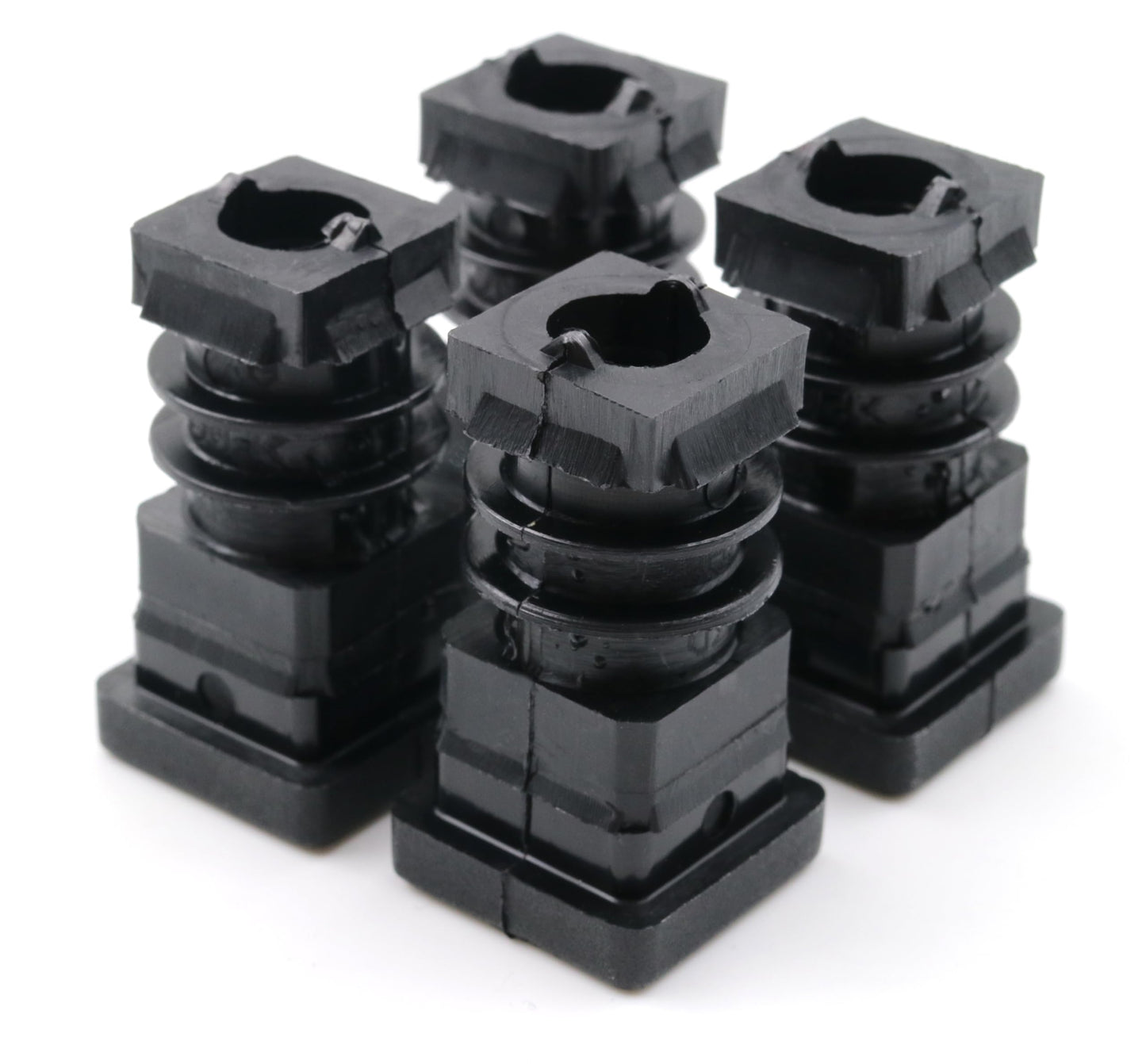

Scope of delivery: 4x Design61 square pipe plugs with steel thread
