Design61 4X threaded plugs, adjusting plugs, foot caps, insert bushing for square tubes 40x40 mm with M10 internal thread, load capacity for wall thickness 1.5-2 mm

For 40 x 40 mm square tubes with a wall thickness of 1.5-2 mm

For inner dimensions 36-37 mm

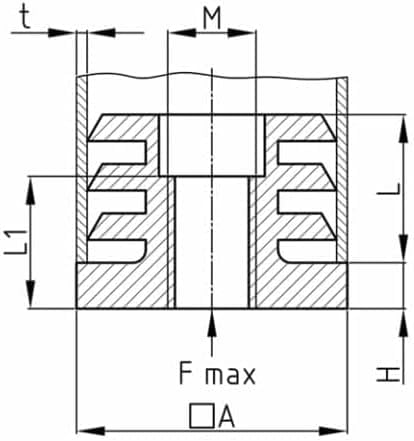

A= 40 / F= max Kg= 200 / H= 5 / L= 24 / L1= 14.5 / M= M8 / t= 1.5-2 mm

Material: Polyamide (PA) / High quality and robust / Total height 30 mm

With slats / Easy installation - for hammering in or inserting

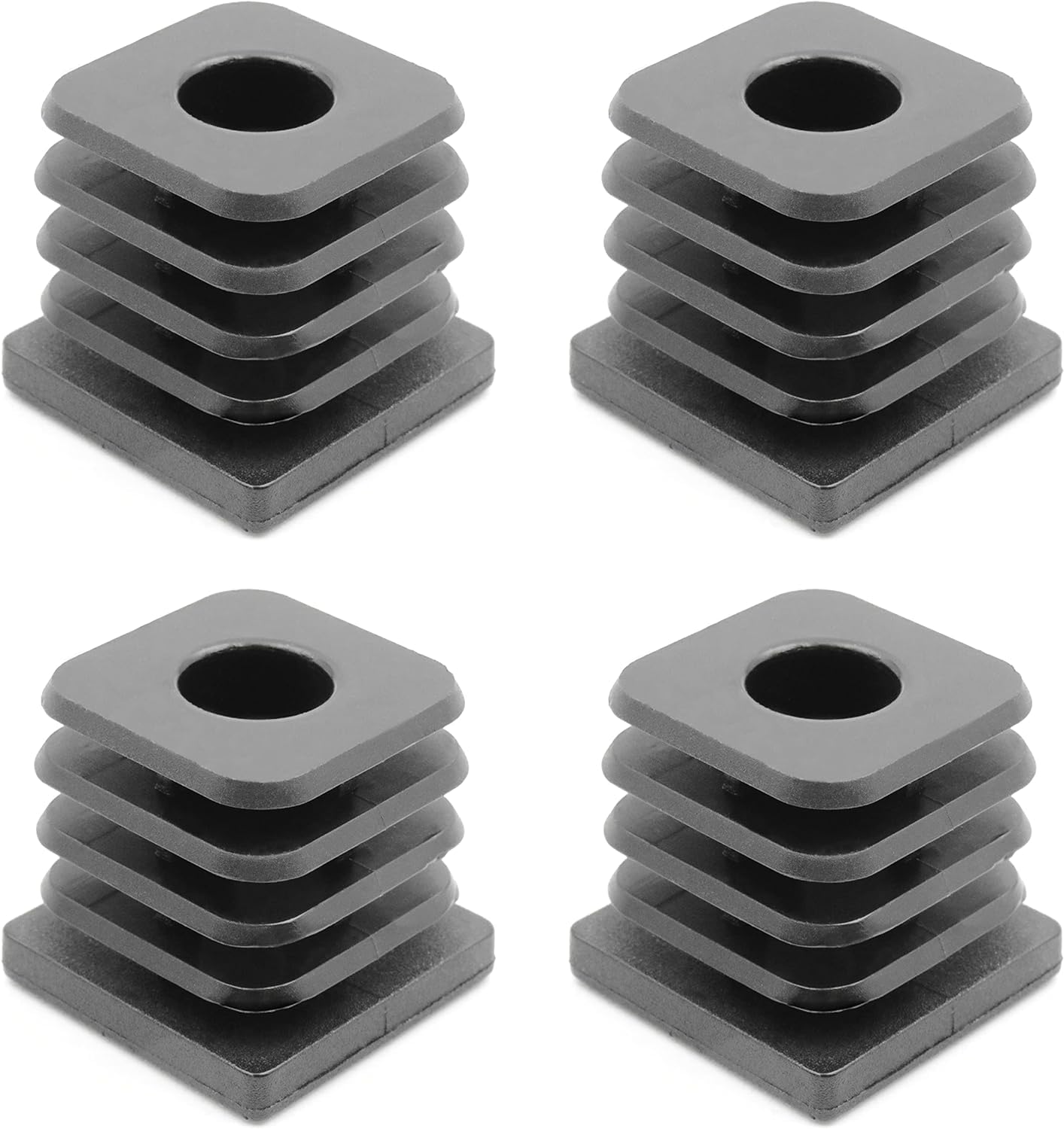

Scope of delivery: 4x Design61 square tube plugs with plastic thread
