Design61 8x threaded plugs, adjusting plugs, foot caps, insert bushing for square tubes 25x25 mm with M10 internal thread, load capacity up to 200 kg for wall thickness 1.5-2 mm

For 25x25 mm square tubes with a wall thickness of 1.5-2 mm

A= 22/ F= max Kg= 200 / H= 5 / L= 16.5 / L1= 14.5 / M= M10 / t= 1.5-2 mm

Material: Polyamide (PA) / High quality and robust / Total height 21.5 mm

With slats / Easy installation - for hammering in or inserting

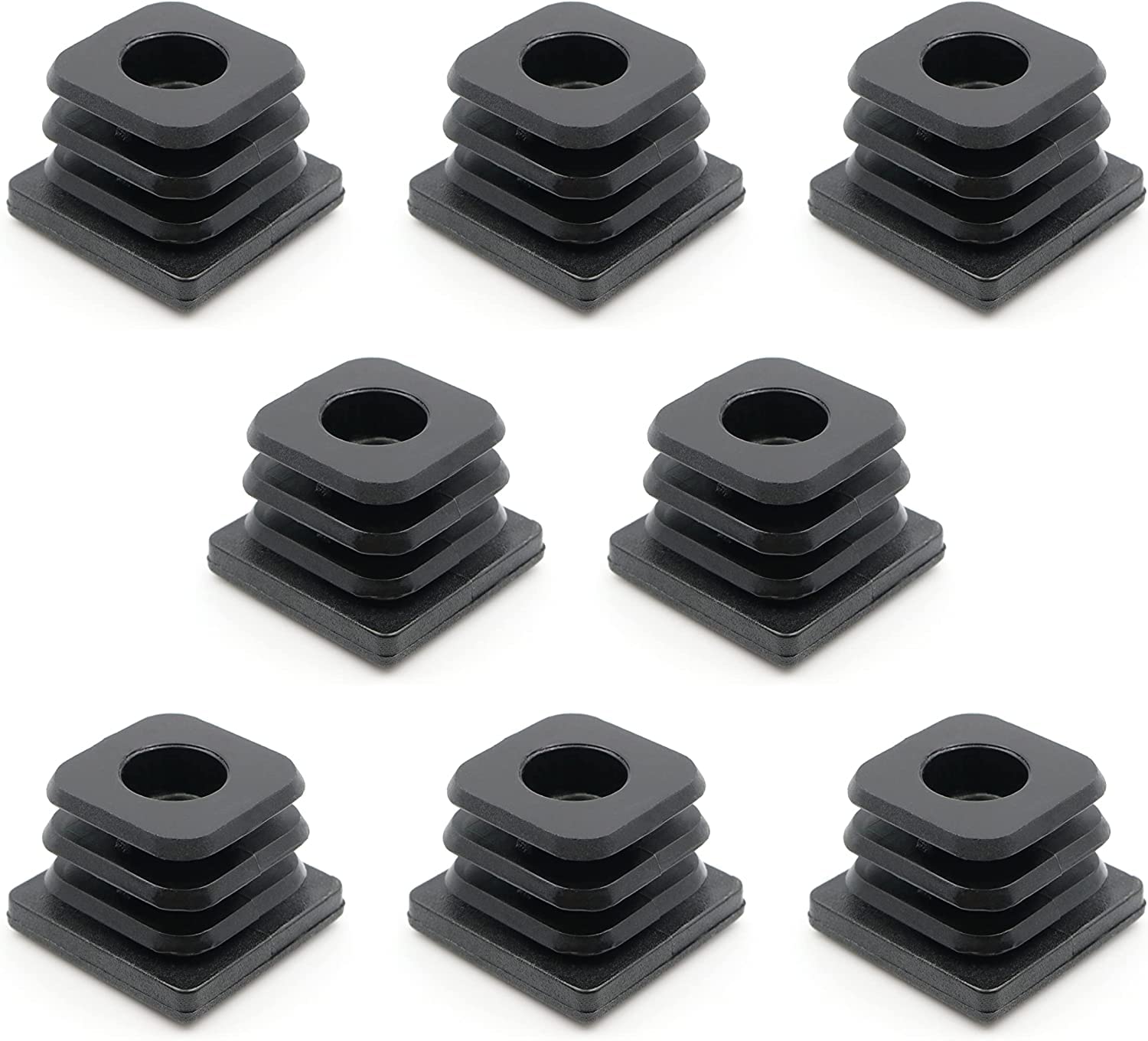

Scope of delivery: 8x Design61 square tube plugs with plastic thread
