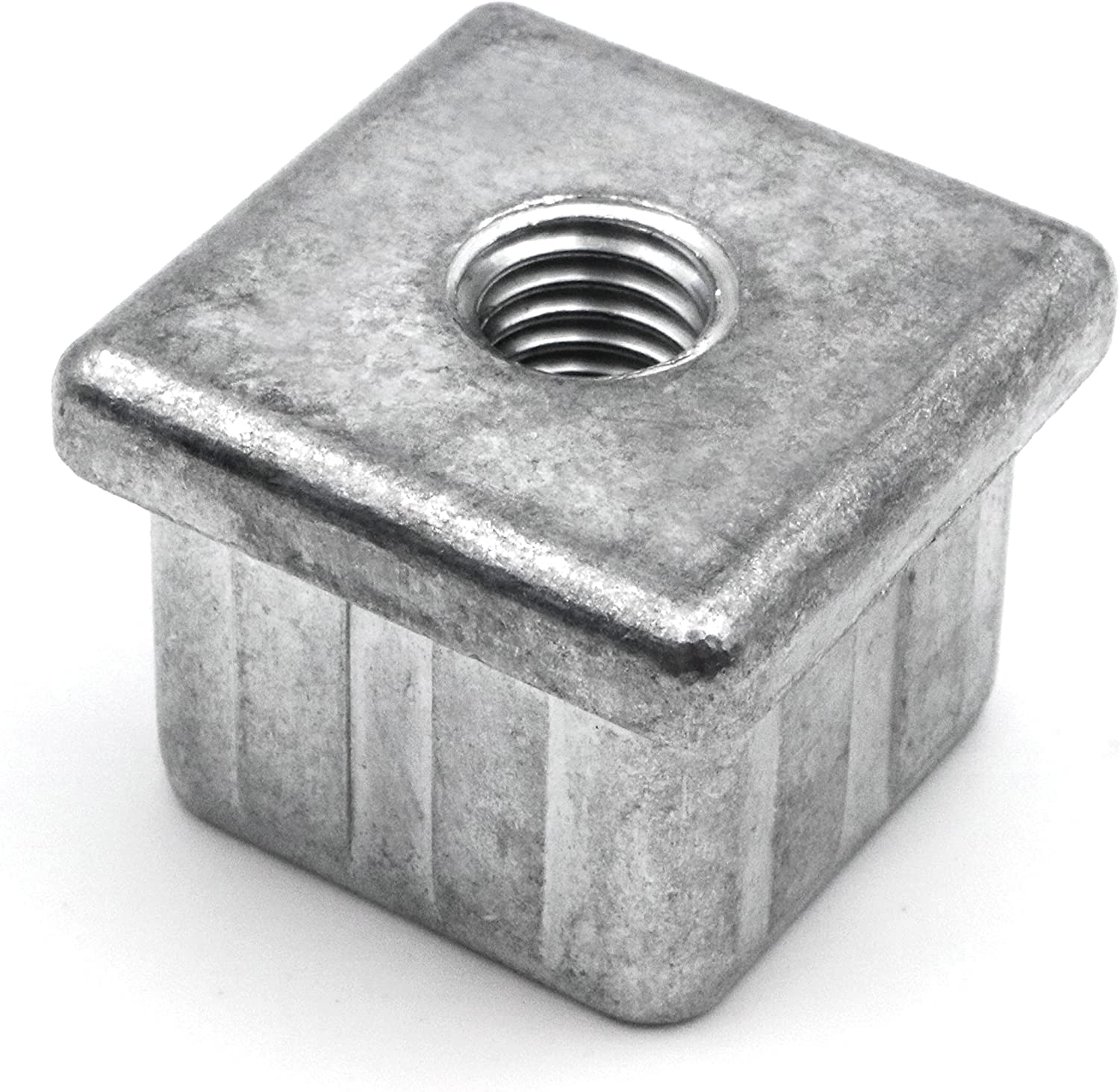

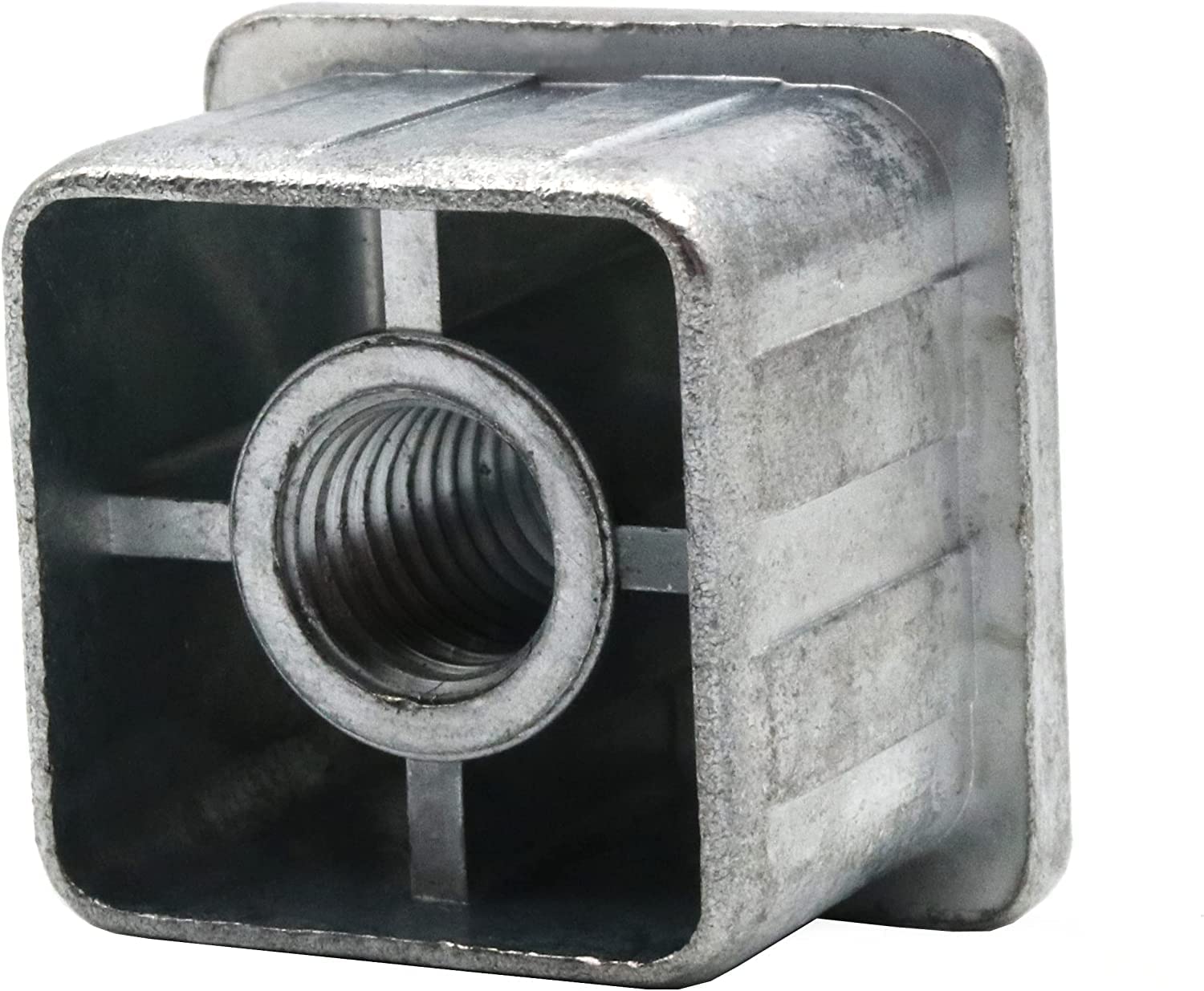

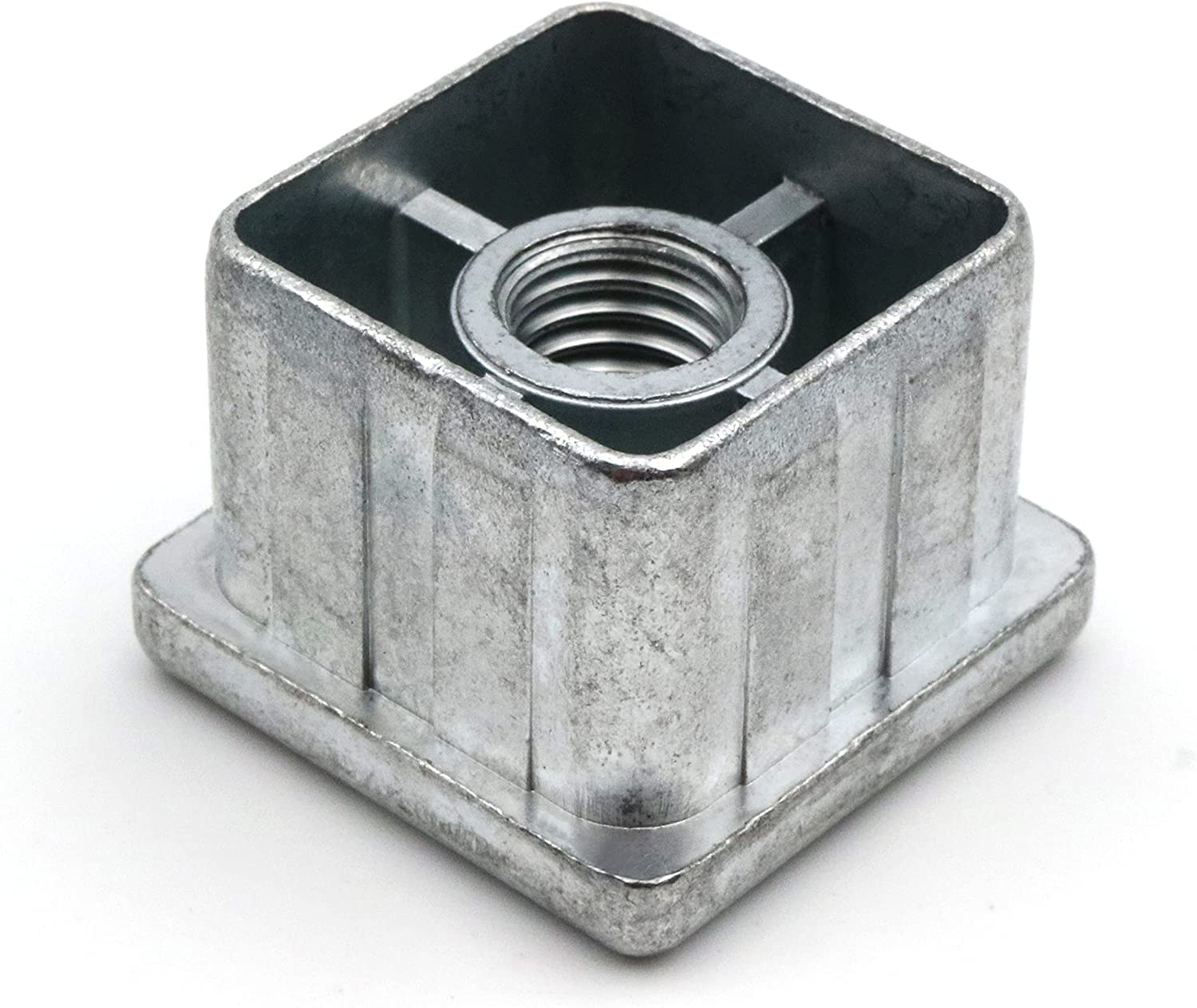

Design61 4X threaded plugs adjusting plugs for square tubes made of zinc die-cast 40x40 mm x 2 mm with M10 internal thread

For 40 x 40 mm square tubes with a wall thickness of 2.0 mm

For inner dimension 36 mm

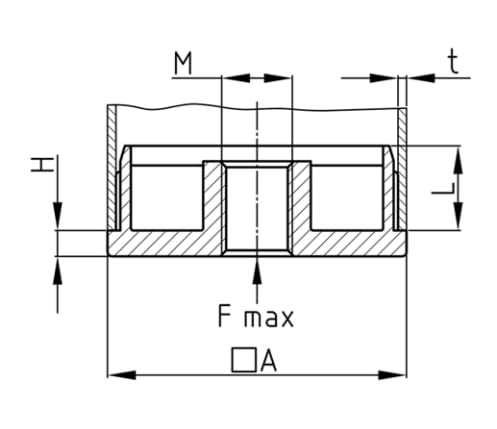

A= 40 / F= max Kg= 800 / H= 5 / L= 17 / M= M10x18 / t= 2.0 mm

Material: die-cast zinc / High quality and robust / Total height 22 mm

With slats / Easy installation - for hammering in or inserting

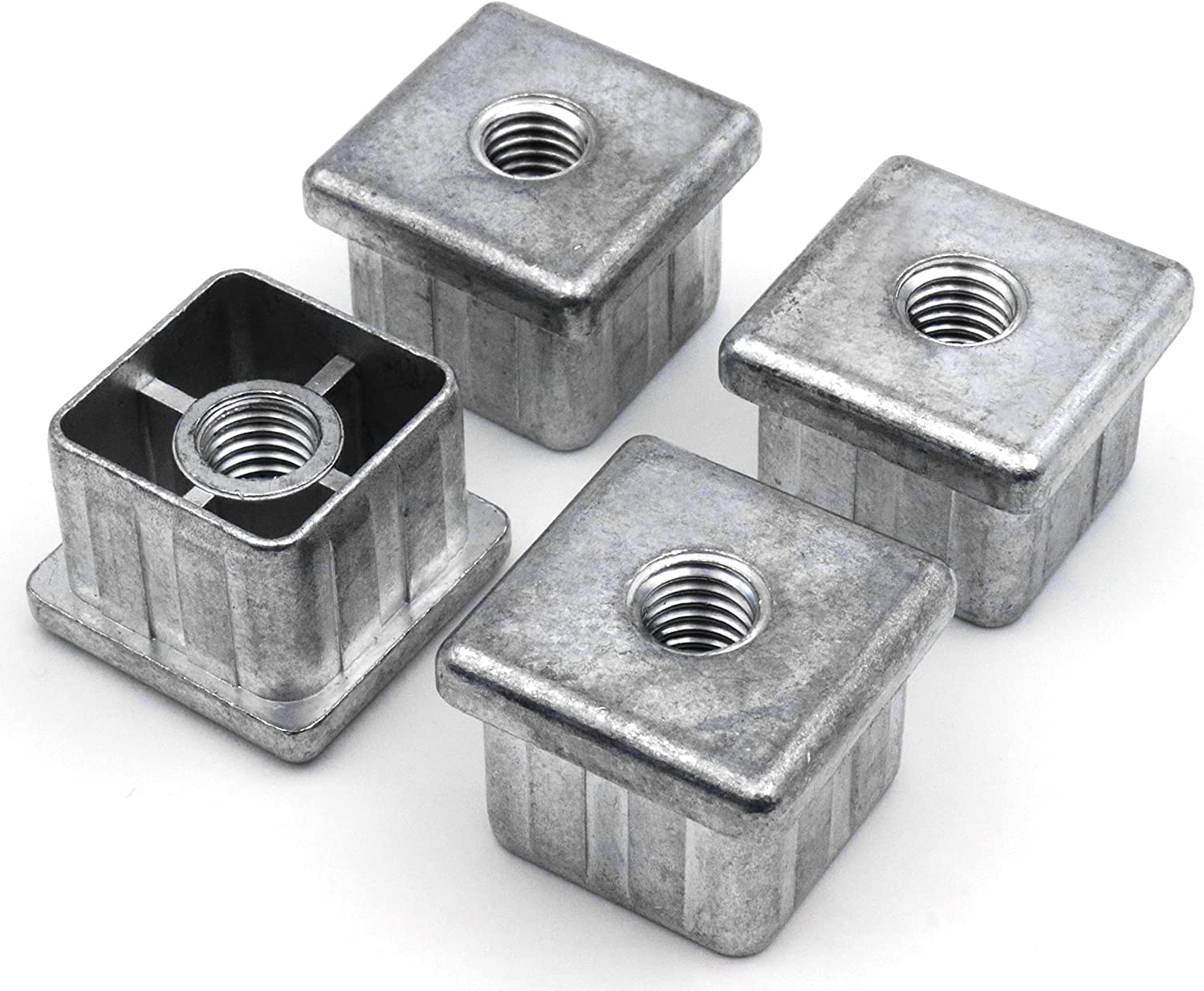

Scope of delivery: 4x Design61 square tube plugs with thread
