Design61 8X threaded plugs, adjusting plugs, foot caps, insert bushing for square tubes 34x34 mm with M8 internal thread, load capacity for wall thickness 1.5-2 mm

For 34 x 34 mm square tubes with a wall thickness of 1.5-2 mm

For inner dimensions 30-31 mm

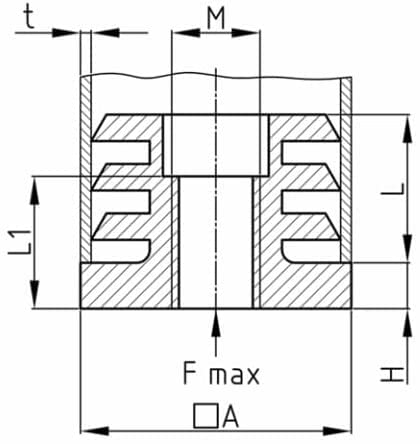

A= 34 / F= max Kg= 200 / H= 5 / L= 24 / L1= 14.5 / M= M8 / t= 1.5-2 mm

Material: Polyamide (PA) / High quality and robust / Total height 30 mm

With slats / Easy installation - for hammering in or inserting

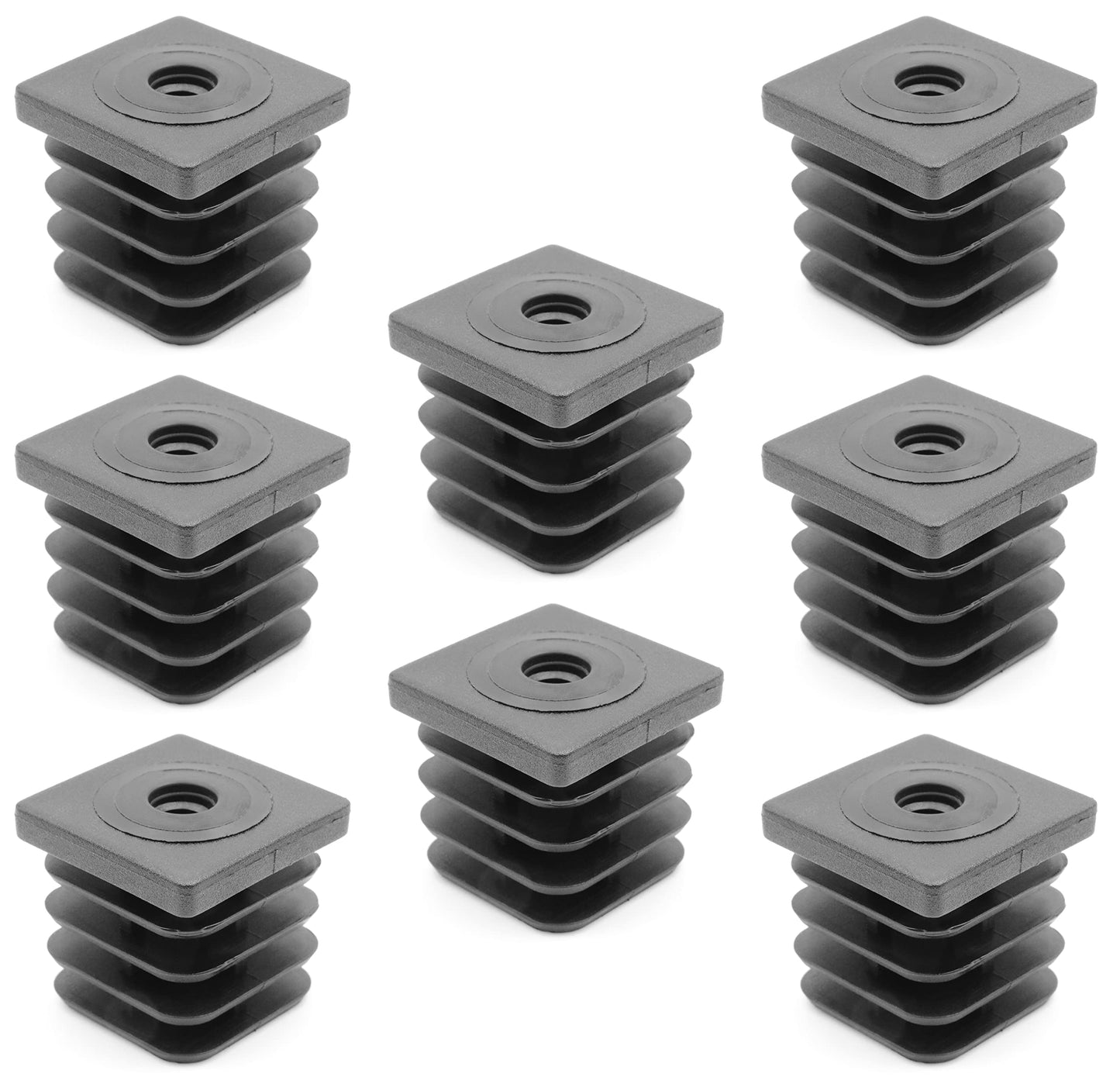

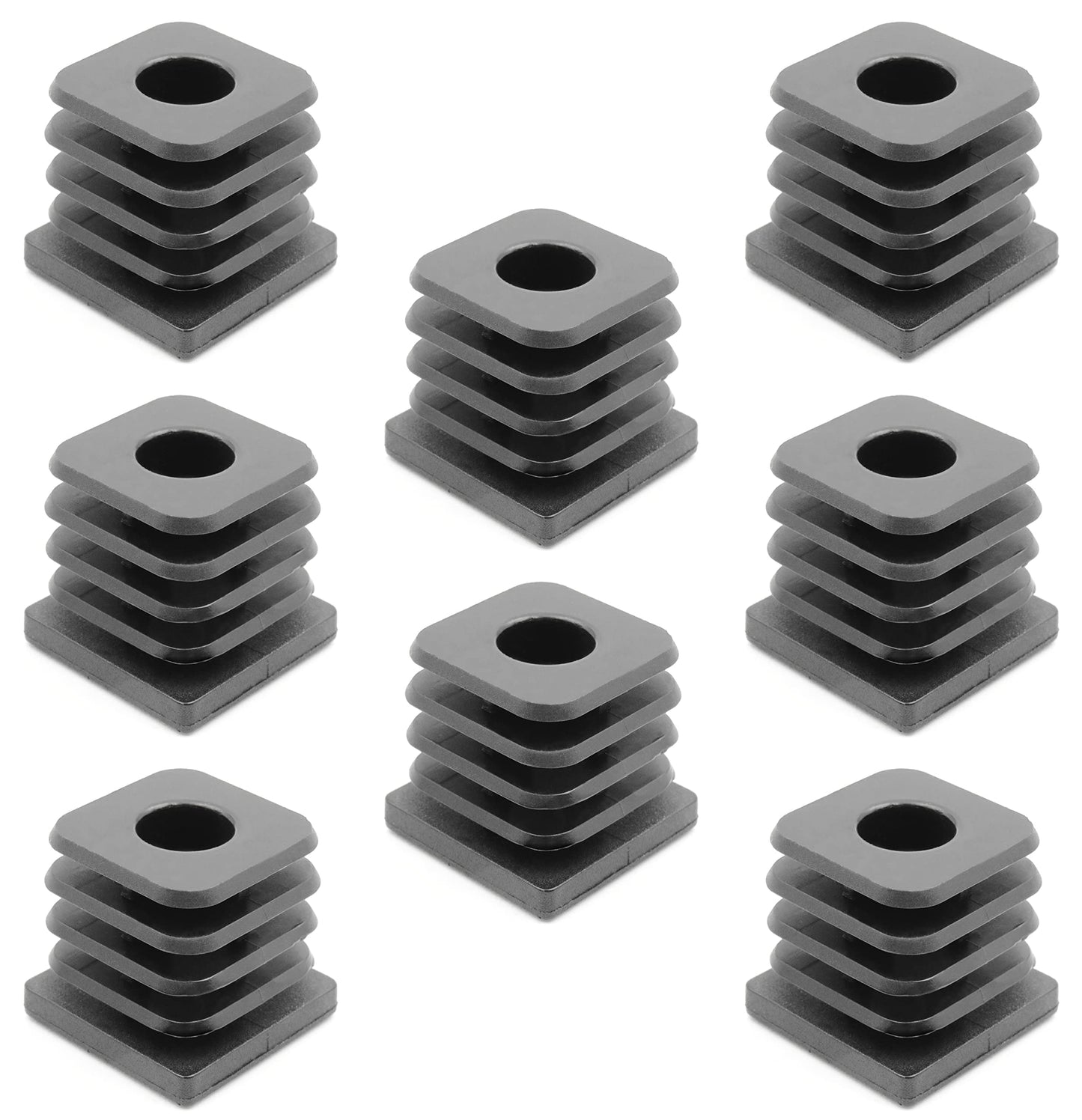

Scope of delivery: 8x Design61 square tube plugs with plastic thread
