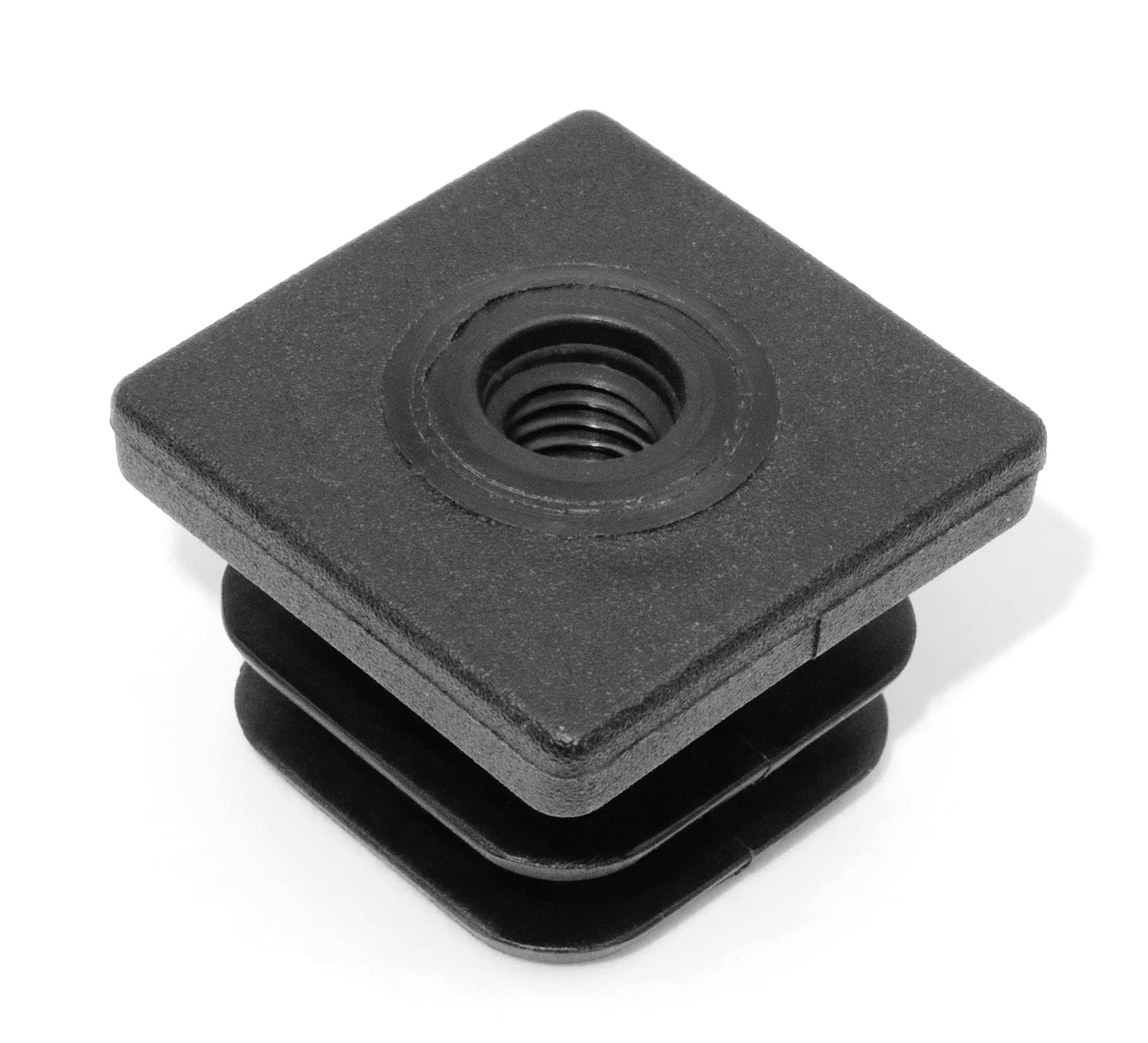

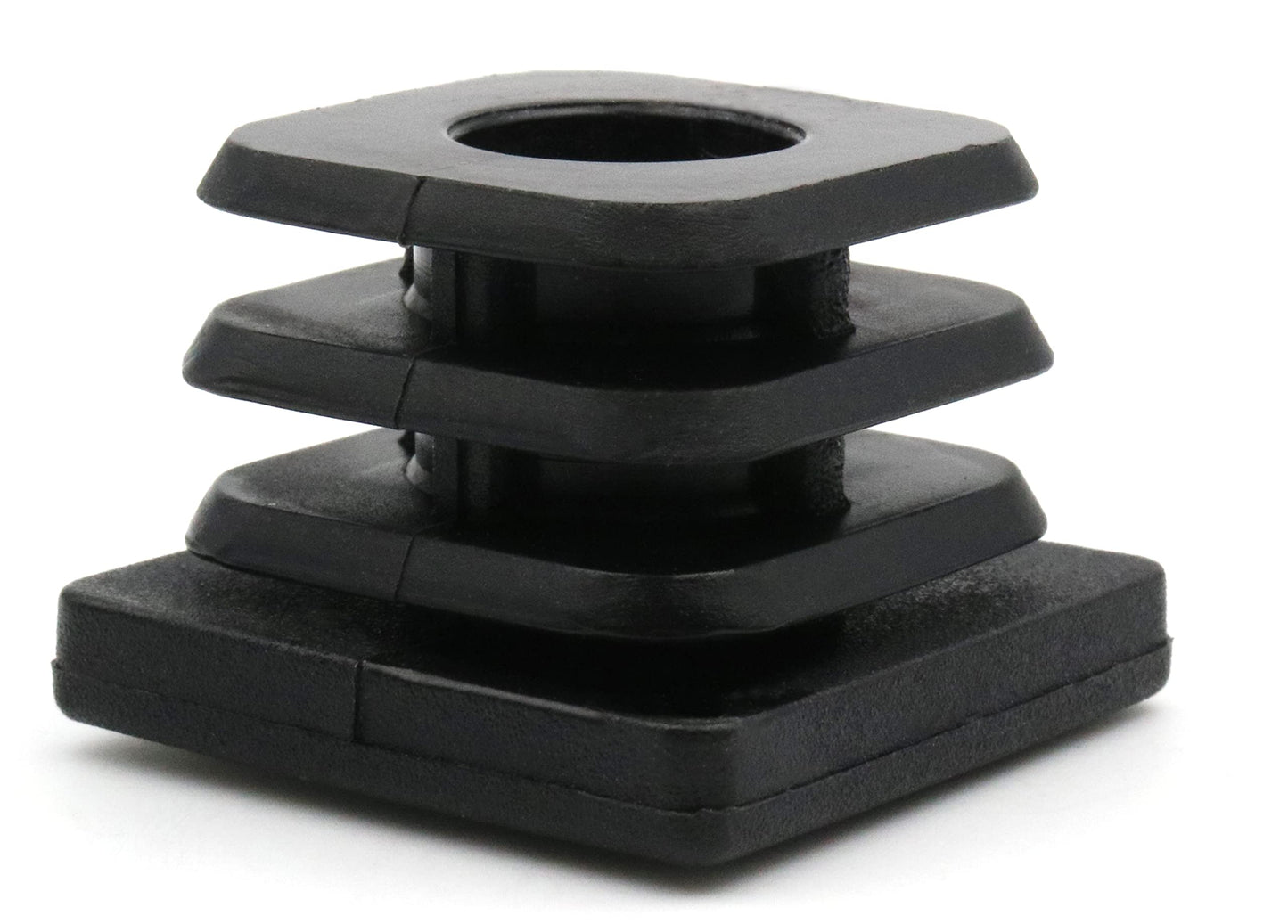

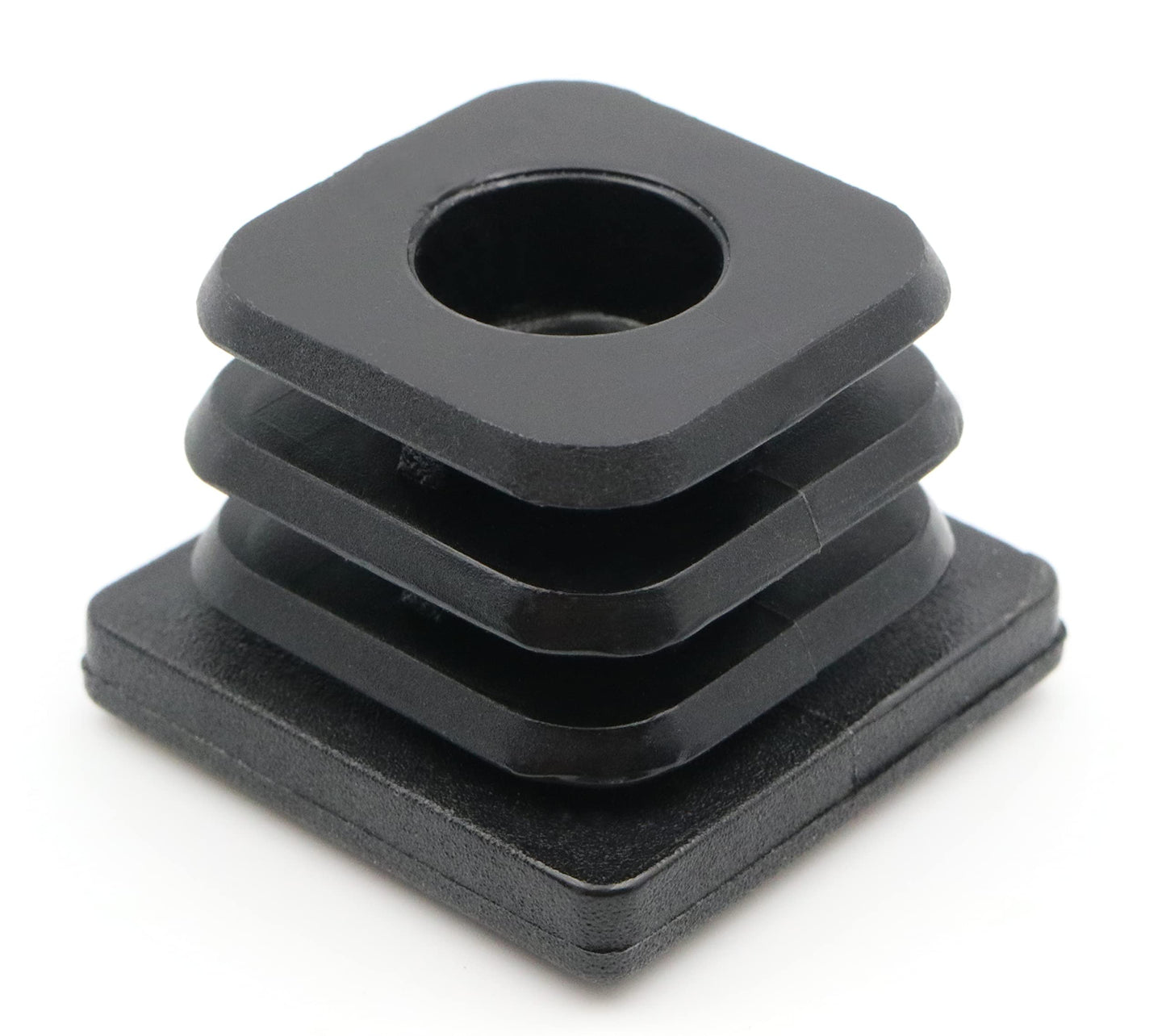

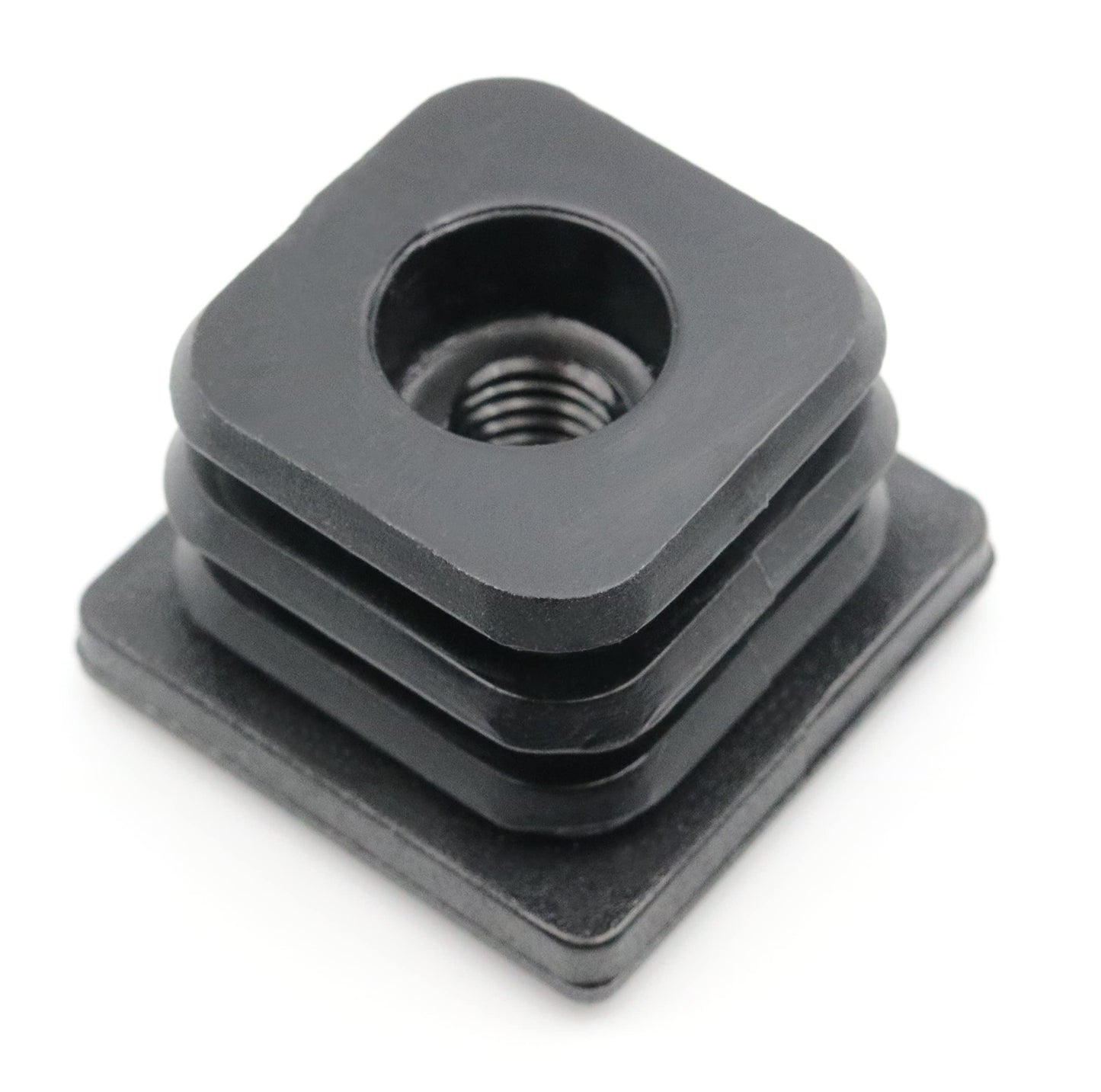

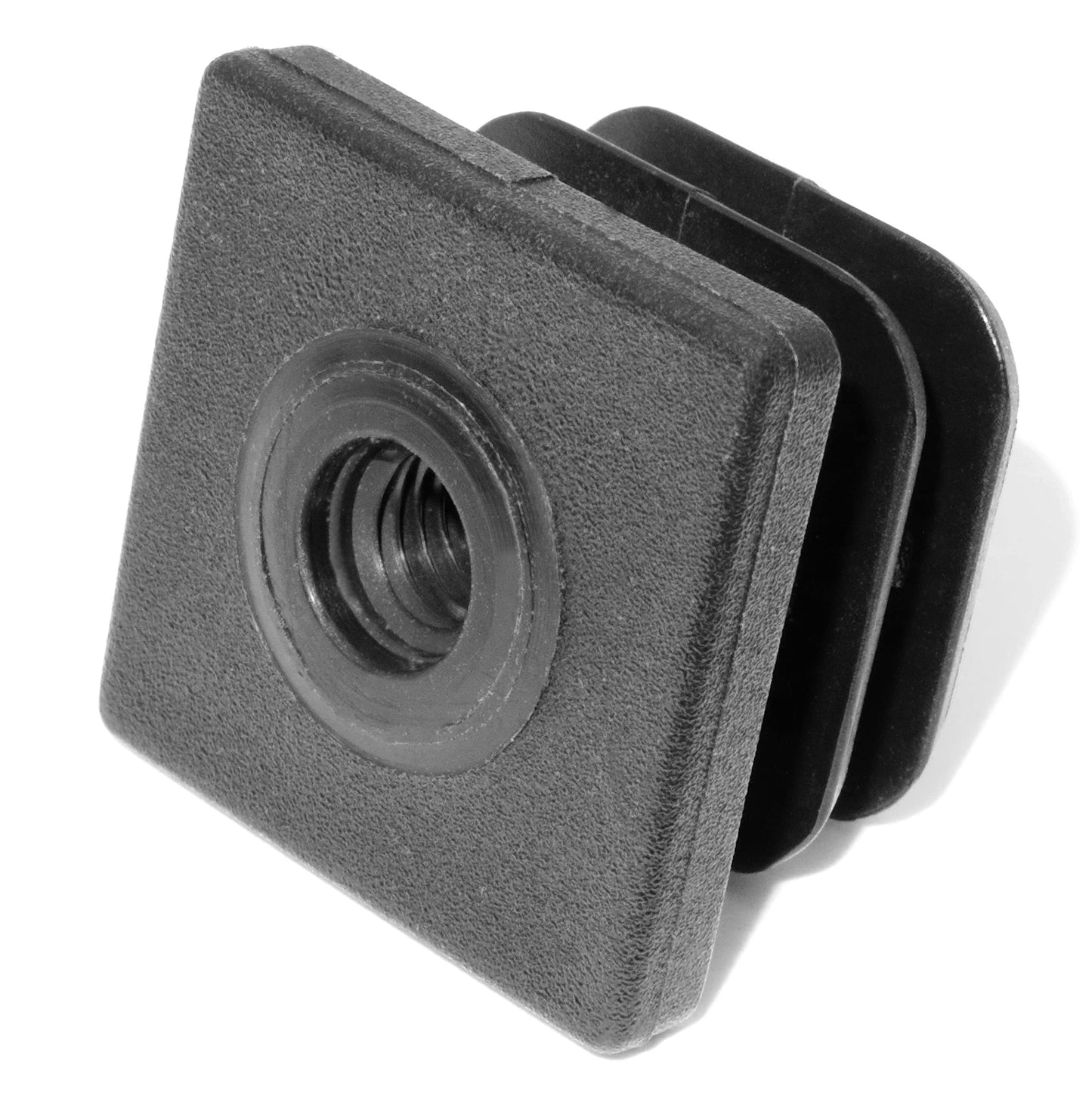

Design61 8x threaded plugs, adjusting plugs, foot caps, insert bushing for square tubes 30x30 mm with M8 internal thread, load capacity up to 200 kg for wall thickness 2.5-3 mm

For 30x30 mm square tubes with a wall thickness of 2.5-3 mm

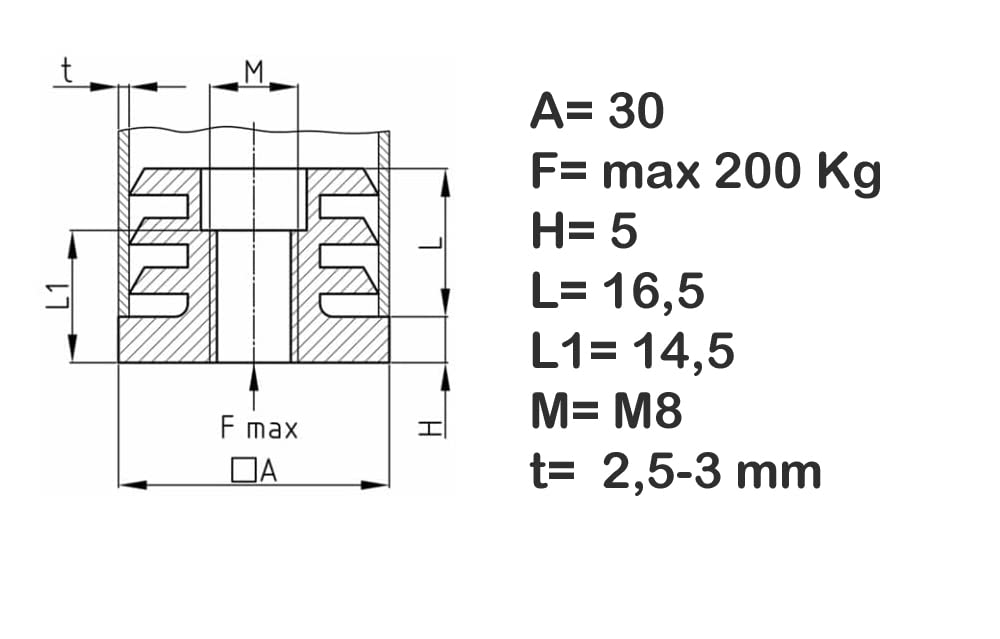

A= 30 / F= max Kg= 200 / H= 5 / L= 16.5 / L1= 14.5 / M= M8 / t= 2.5-3 mm

Material: Polyamide (PA) / High quality and robust / Total height 21.5 mm

With slats / Easy installation - for hammering in or inserting

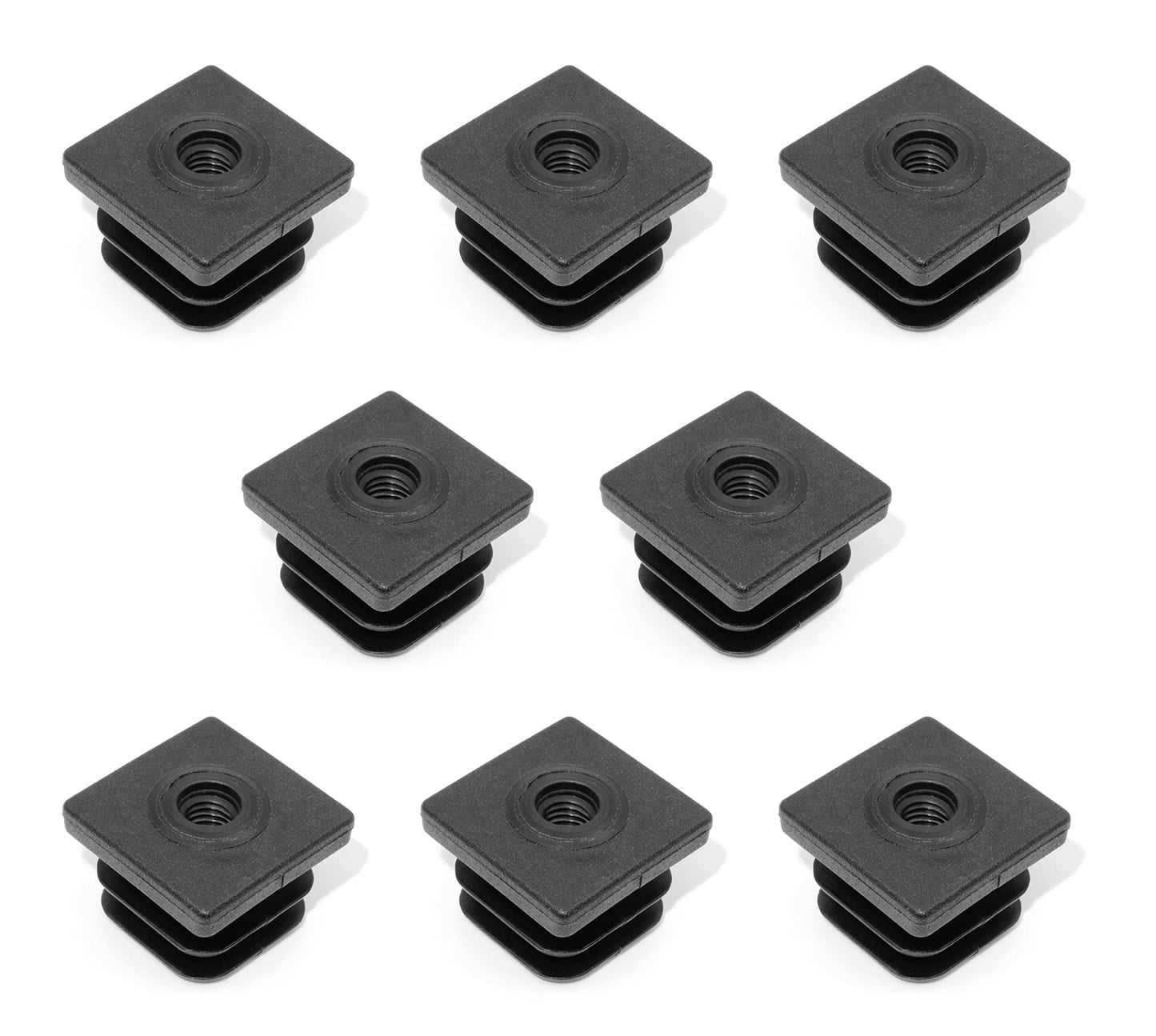

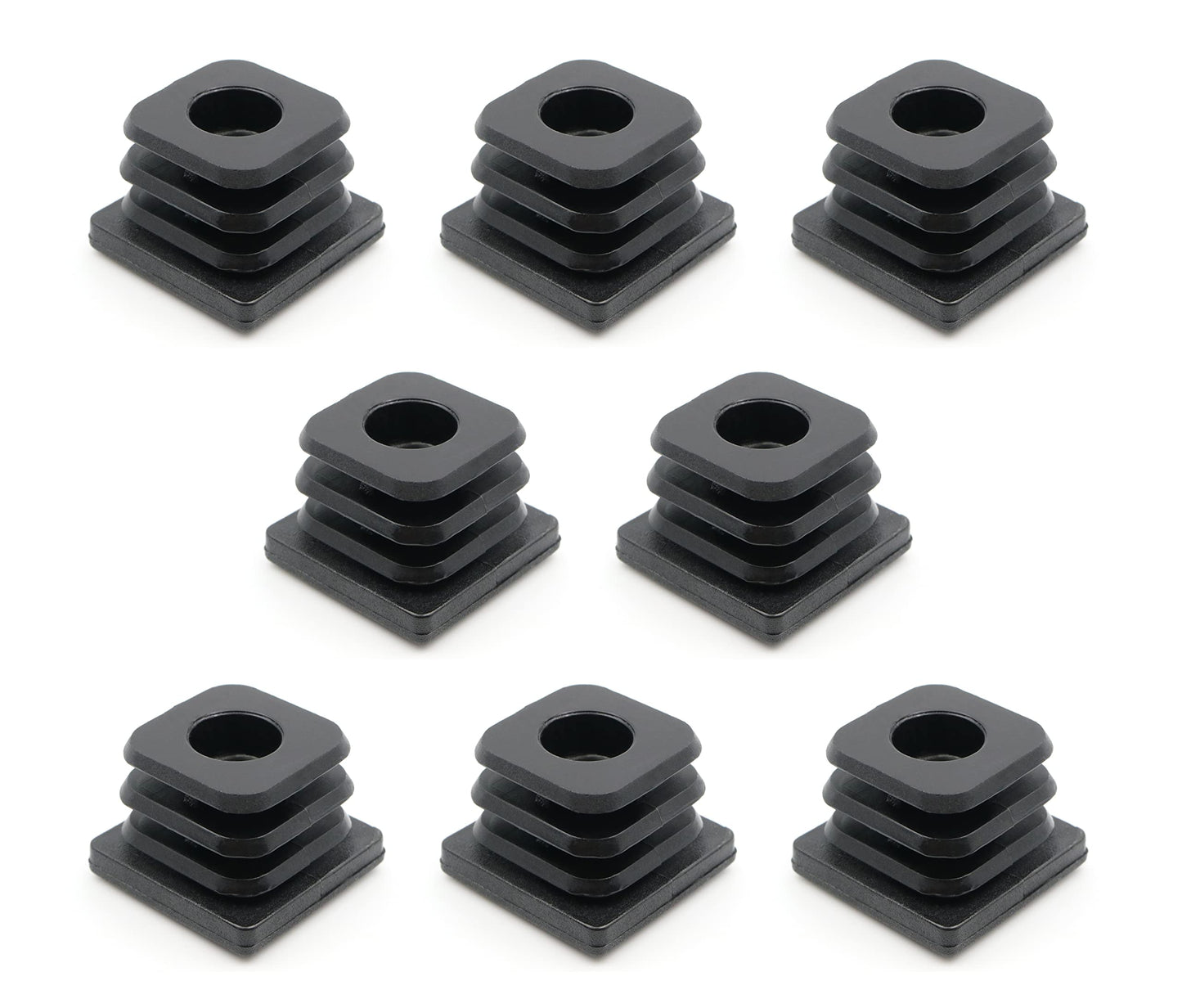

Scope of delivery: 8x Design61 square tube plugs with plastic thread
