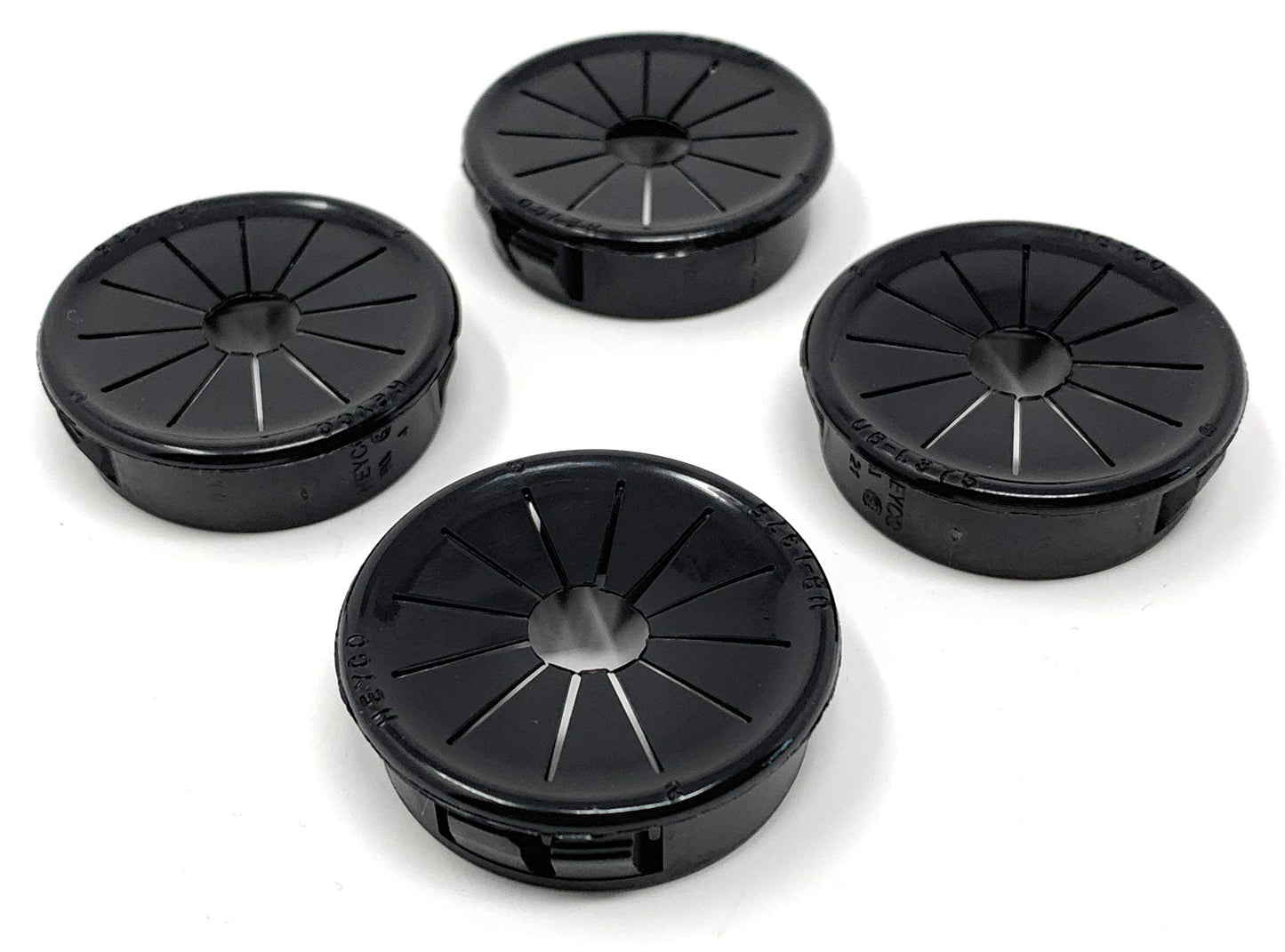

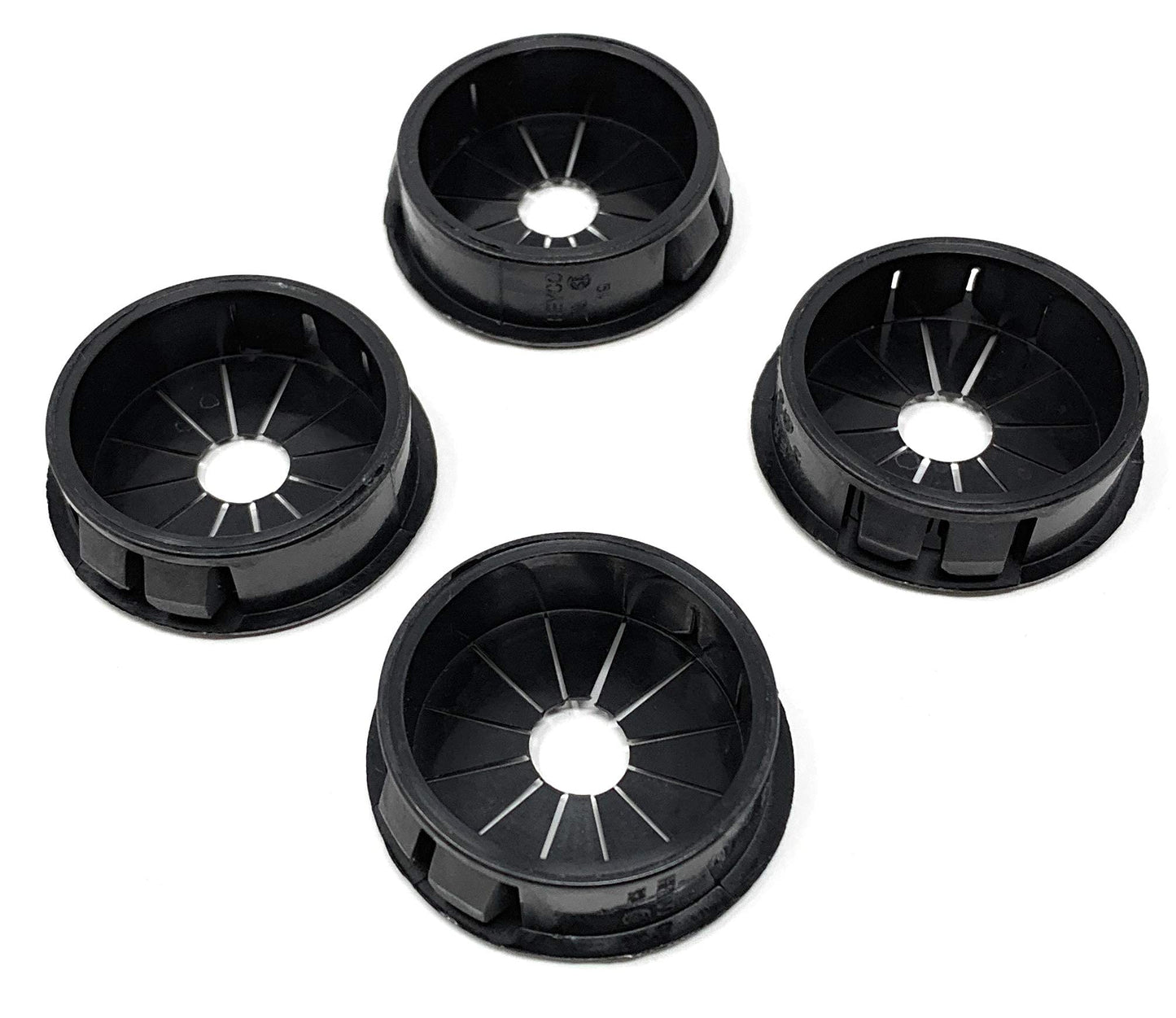

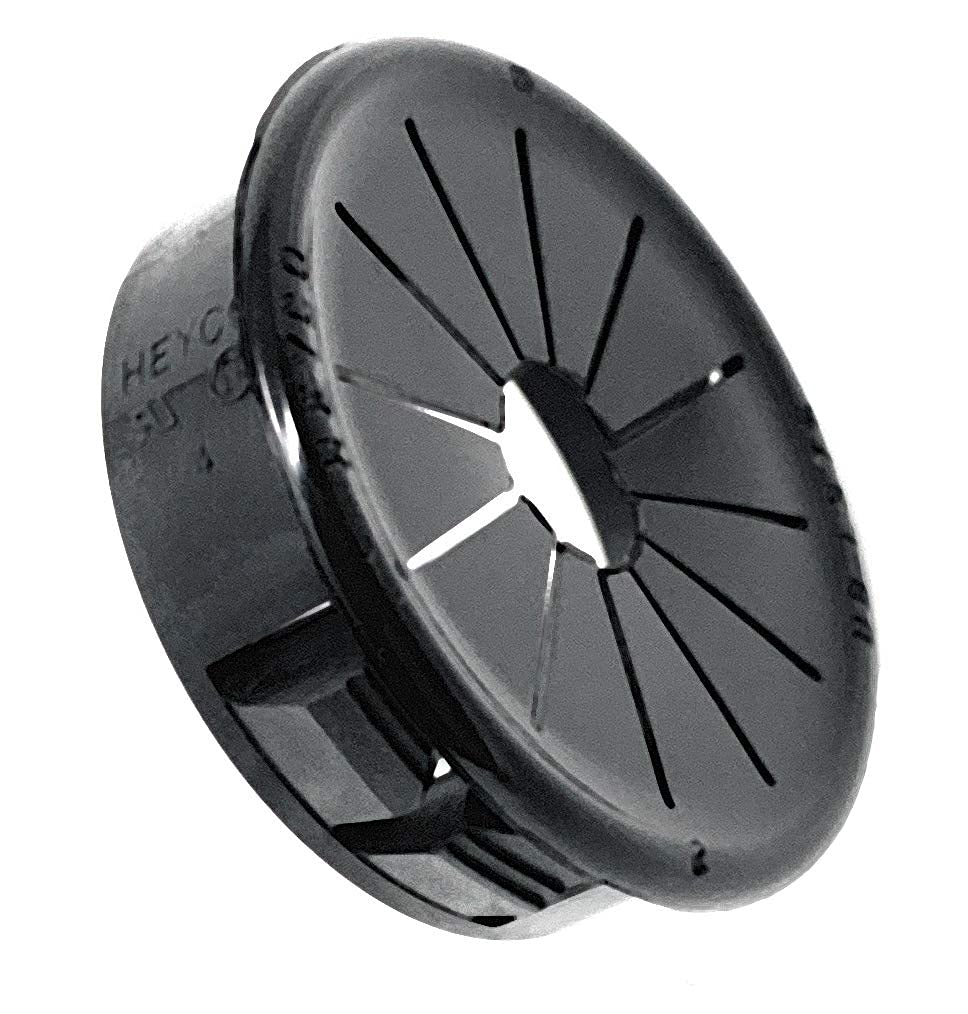

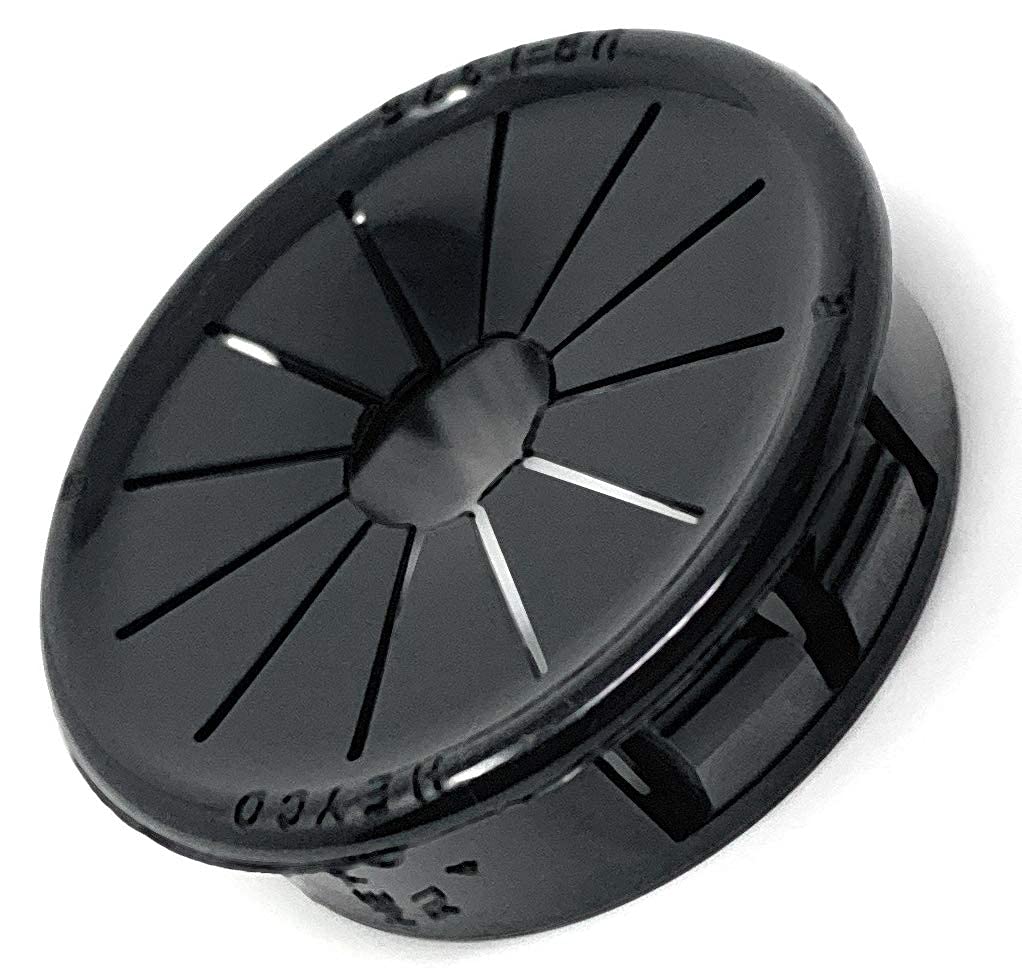

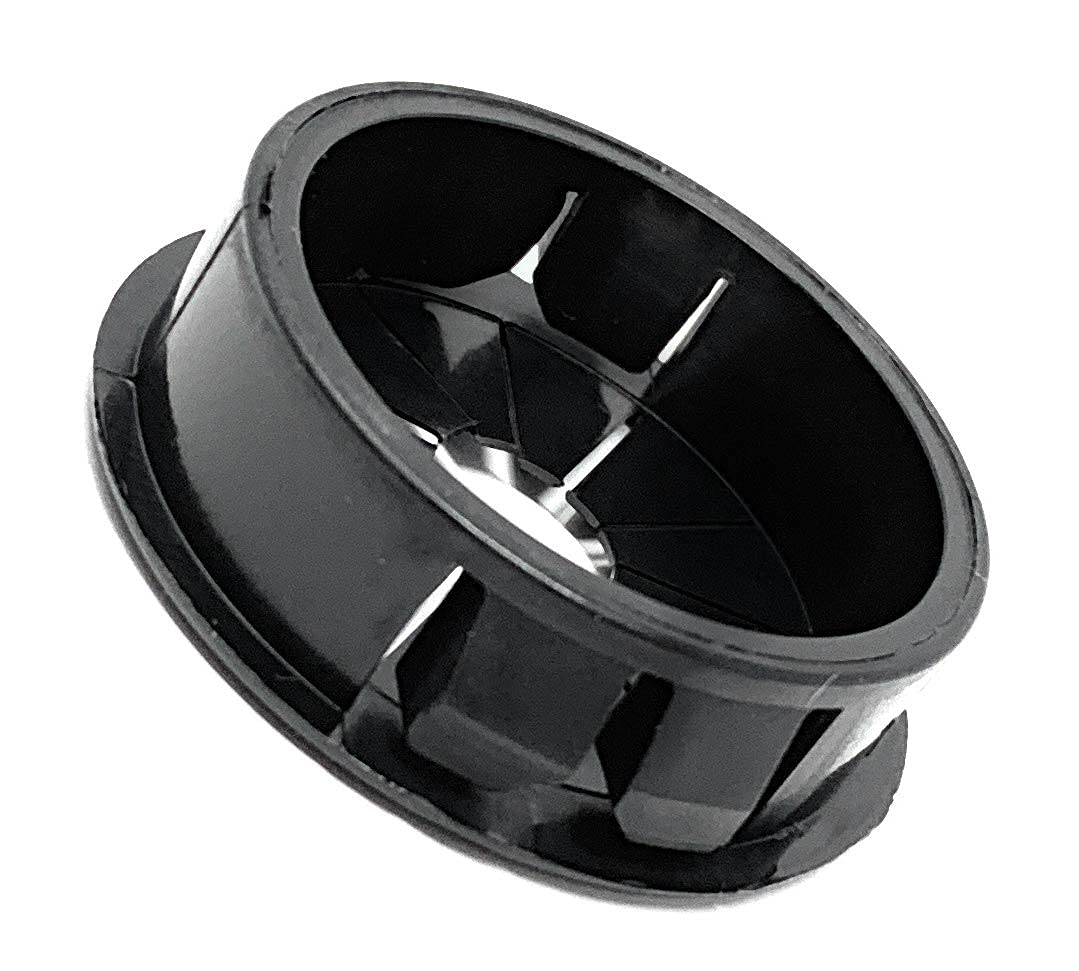

Cable grommets set of 20 plastic for cables from 3.2-25.4 mm Ø and sheet metal up to max. 3.2 mm thickness in black

Dimensions: Ø 36.5 x H 11.5 mm

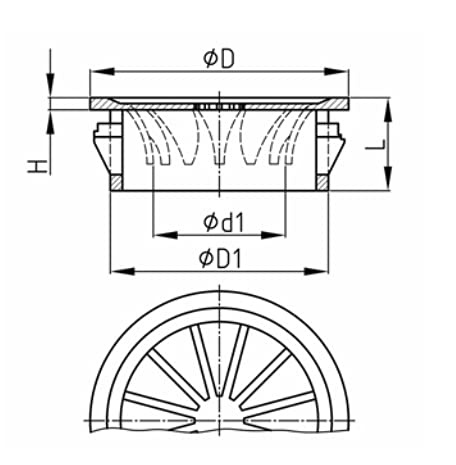

d 34.9, d1 25.4, D 36.5, D1 34.4, H 1.6, L 11.5, t max 3.2 mm

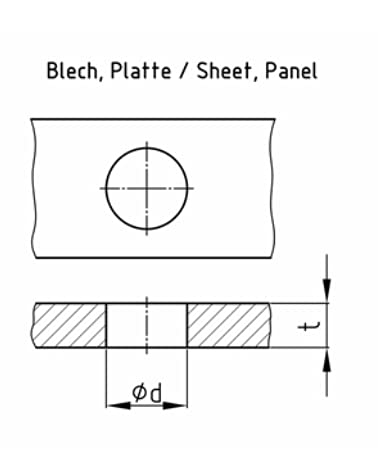

Suitable for hole Ø34.9mm and sheet metal up to max. 3.2mm thickness

Suitable for cables from 3.2 to 25.4 mm diameter

Absorbs vibrations / Halogen-free / Material: Polyamide 6.6 (PA 6.6)

105 °C max. permissible operating temperature

Burning behavior: UL 94V-2

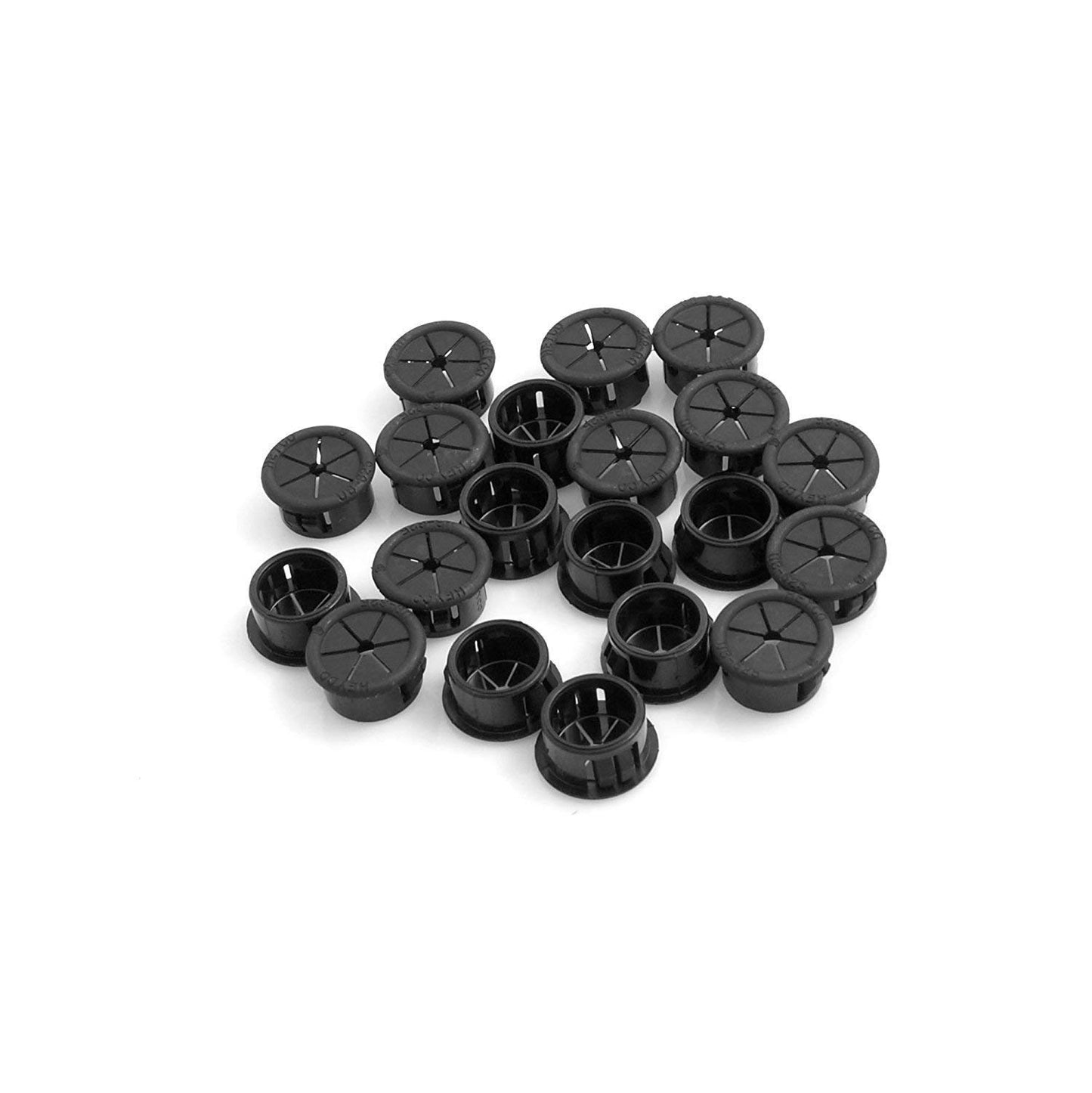

Scope of delivery: 20x Design61 cable bushings
